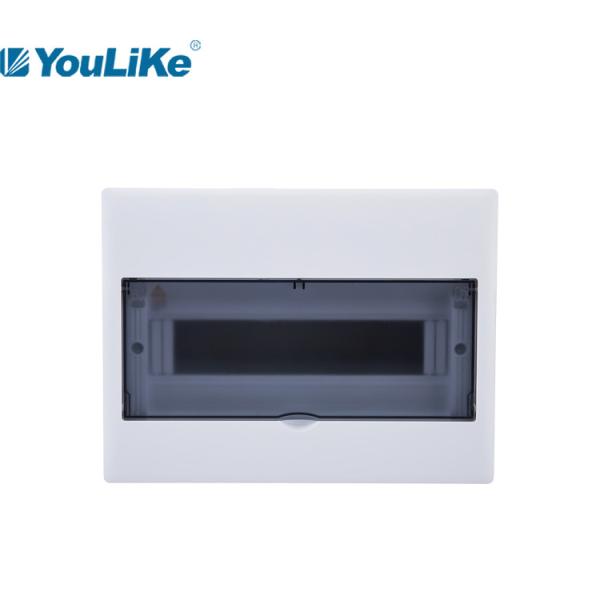

switch board Flush mount 6 ways to 42 ways electrical power distribution box DB box
Product Characteristics
1. Box material:power coated steel
2. Cover frame material: HIPS
3. Door material: HIPS (for white door) and PC material (for transparent door).
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Application
JX series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. 4.The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
It is recommended to install the support panel after the wall is puttying.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of JX series, Flush
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
| JXP-A 106 | 6way | 178*210*17.5(26) | 156*192*75*0.8 | 6*9 | 4 | 3 | 2 |
| JXP-A 110 | 10way | 250*210*17.5(26) | 228*192*75*0.8 | 6*9 | 6 | 5 | 5 |
| JXP-A 113 | 13way | 304*210*17.5(26) | 282*192*75*0.8 | 6*9 | 6 | 5 | 6 |
| JXP-A 116 | 16way | 358*210*17.5(26) | 336*192*75*0.8 | 6*9 | 8 | 7 | 7 |
| JXP-A 118 | 18way | 394*210*17.5(26) | 372*192*75*0.8 | 6*9 | 11 | 10 | 8 |
| JXP-A 121 | 21way | 448*210*17.5(26) | 426*192*75*0.8 | 6*9 | 11 | 10 | 10 |
| JXP-A 124 | 24way | 524*252*17.5(26.5) | 498*230*90*1.0 | 6*9 | 11 | 12 | 10 |
| JXP-A 232 | 32way | 358*405*17.5(26) | 336*380*90*0.8 | 6*9 | 13 | 15 | 7 |
| JXP-A 242 | 42way | 448*405*17.5(26) | 426*380*90*0.8 | 6*9 | 16 | 17 | 10 |
Product Details Demonstration
#1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
#2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
#3. Stainless earthing bolts with warning label.
#4. Reinforced structure design to allow higher tensile strength of plastic cover.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| JXP-A 106 | 505*200*455 | 0.0460 | 10 | | |
| JXP-A 110 | 505*275*455 | 0.0632 | 10 | 14.66 | |
| JXP-A 113 | 505*325*455 | 0.0747 | 10 | 17.10 | |
| JXP-A 116 | 505*230*385 | 0.0448 | 5 | 9.25 | |
| JXP-A 118 | 505*230*425 | 0.0494 | 5 | 10.20 | |
| JXP-A 121 | 505*230*475 | 0.0552 | 5 | 11.65 | |
| JXP-A 124 | 465*275*555 | 0.0710 | 4 | 6.70 | |
| JXP-A 232 | 460*135*420 | 0.0261 | 1 | 4.05 | |
| JXP-A 242 | 505*135*465 | 0.0317 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
